Golf R MK7 MK7.5 GTI Intercooler 2.0 TSI T&F | MTC Motorsport

MTC Motorsport MK7 Golf R 2.0 TSI Front Mount Intercooler With Tube & Fin Core

This intercooler replaces the stock intercooler and eliminates the two clip connectors that can cause boost leaks.

This intercooler is one of the bigger intercoolers available for these models with the 70mm inlet and outlet compared to the standard 60mm. The core measures 630mm x 415mm x 50mm.

For comparison the standard intercooler measures: 610mm x 410mm x 40mm.

This will fit the following cars:

• VW Golf 7 GTI 2013+ 5G
• VW Golf 7 R 2013+ 5G
• VW Golf 7 GTI ClubSport 2016+ 5G
• VW Passat 2.0 TSI B8 2015+ 3G
• Skoda Octavia vRS III 2014+ 5E
• Skoda Superb 1.8 / 2.0 TSI 2015+ B8 3V
• SEAT Leon Cupra III 2014+ 5F
• Audi TT 2.0 TSI III 2014+ 8S some minor plastic trimming required to fit
• Audi TTS III 2015+ 8S some minor plastic trimming required to fit
• Audi S3 2013+ 8V
• Audi A3 2.0/1.8 TSI 2013+ 8V

We have engineered these intercoolers using a tube and fin core matched to our flowed cast end tanks with directional air flow fins on the inlet side, the same as we use on our other intercoolers. This is the most efficient way to keep the intake temperatures low. They have been TIG welded and there is no trimming required to fit on most vehicles.

We have tested our intercoolers on a few vehicles and found they have absolutely fantastic results. The IAT compared to the standard intercooler are reduced massively which means you get consistent increased performance.

The standard intercooler and the MTC intercooler both had intercooler intake temperatures of between 115-120 degrees every time over 5 runs on the road.

At the other side of the intercooler into the engine the standard intercooler temperatures were between 80-85 degrees whereas the MTC intercooler temperatures were at 35 degrees every time. Our intercoolers are proven to handle over 500 bhp.

These results are fantastic as these engines suffer from heat soak after a few pulls on the road. This massively helps and in most cases solves that problem.

Professional installation is recommended as some parts can be a little tricky. Fitting will take approximately 3-4 hours by a professional mechanic.

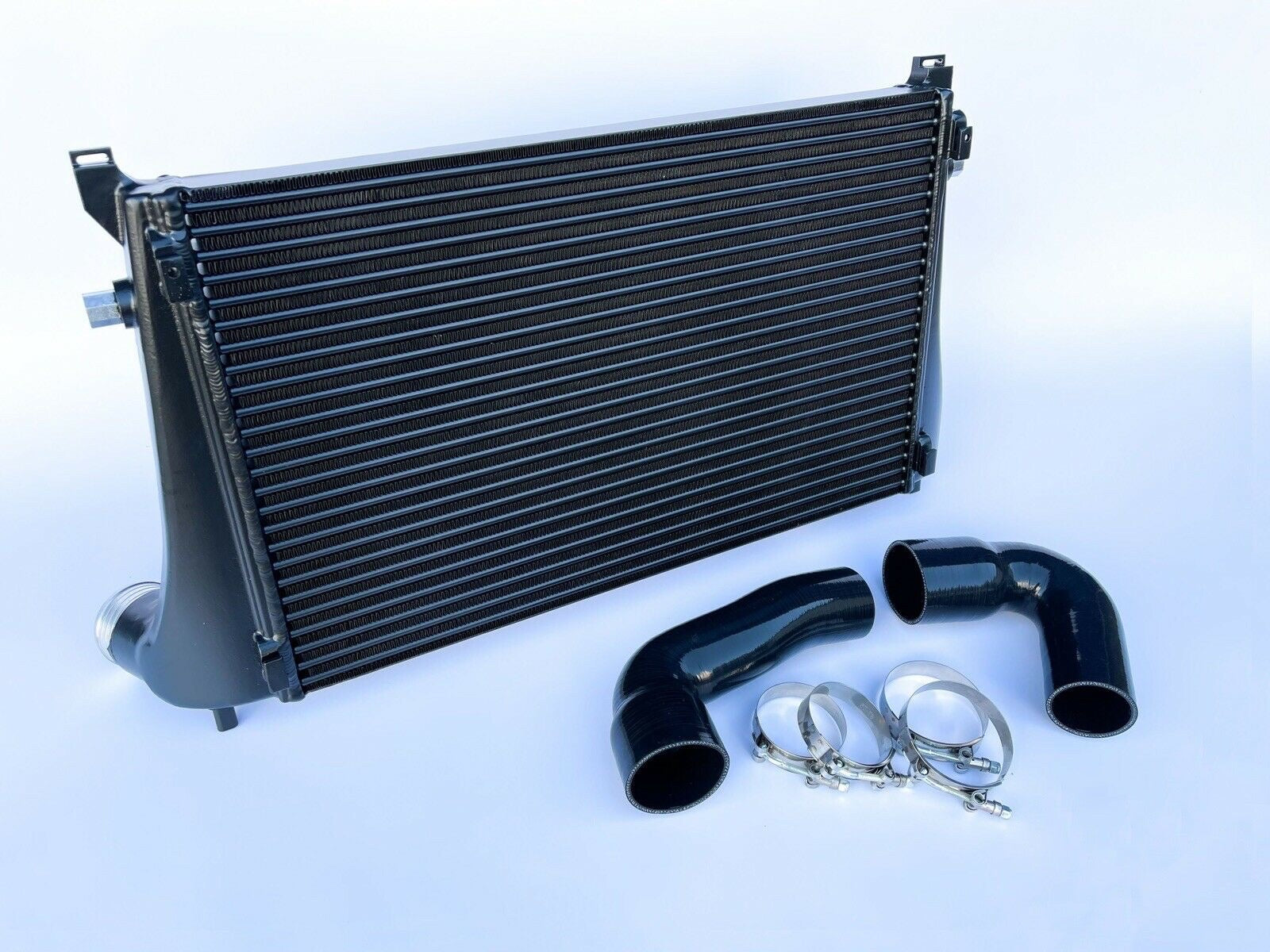

Included in the kit:

• Intercooler
• x2 Silicone Hoses
• x4 Jubilee Clips

We would go as far as to say this is the best intercooler on the market for the 2.0 TSI.
